Description
Product Description
1)Application:

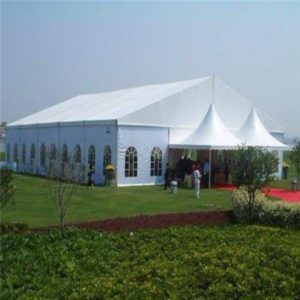

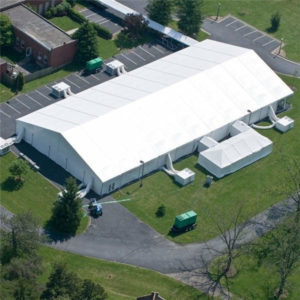

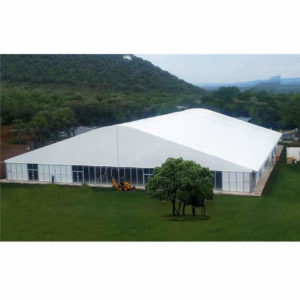

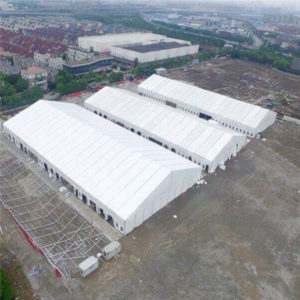

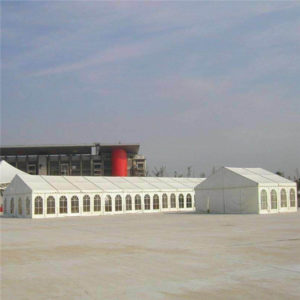

Custom Outdoor Function Catering Tent Wedding Marquee Tent (LS series, A frame) can be widely used as the wedding tent, party tent, exhibition tent, conference tent, different kinds of festivals tent, hajj tent, corporate events tent, sports tent, & temporary, semi-permanent or permanent building purpose etc.
2)Materials:
Fabric: Double PVC coated polyester fabric, 650-900g/sq. m., water proof, UV resistance, anti-mildew, self-cleaning, fire retardant according to standard NFPA701 & DIN4102 B1/M2
3)Frame:
Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Main frame profile size: 256*120*5mm ;
4)Connections:
Hot-dip galvanized steel;
5)Life span:
Life span of fabric(cover & sidewalls): 8-10years;
Life span of aluminum frame: 20-30years
6)Structure safety parameters:
Wind load: 100km/h (0.5km/sq.m.)
Snow load: 25kg/sq.m.
7)Color available:
White, red, yellow, blue, green, black, grey, transparent etc .
8)Optional Accessories:
Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, Sandwich walls, auto-rolling door, decoration lining, flooring system, clear PVC windows sidewalls, transport rack for the glass door & walls, ramp etc.
| Aluminum Alloy Tent | ||||
| Span(m) | Length(m) | Eave Height(m) | Ridge Height(m) | Main Tube(mm) |
| 3 | 3 | 2.3 | 3.7 | |
| 4 | 4 | 4.2 | ||
| 5 | 5 | 4.7 | ||
| 6 | 6 | 5.2 | ||
| 6 | 9 | 3 | 4.1 | 48*84 |
| 12 | ||||
| 15 | ||||
| 18 | ||||
| 21 | ||||
| 24 | ||||
| 30 | ||||
| 10 | 12 | 3 | 4.8 | 48*104 |
| 18 | ||||
| 21 | ||||
| 24 | ||||
| 27 | ||||
| 30 | ||||
| 12 | 15 | 3 | 5.2 | 121*68 |
| 18 | ||||
| 21 | ||||
| 24 | ||||
| 30 | ||||
| 15 | 15 | 3-4 | 6.2-7.2 | 150*108 |
| 18 | ||||
| 21 | ||||
| 30 | ||||
| 18 | 21 | |||
| 24 | ||||
| 27 | ||||
| 30 | ||||
| 20 | 20 | 3-4 | 7-8 | 203*112 |
| 30 | ||||
| 40 | ||||
| 60 | ||||
| 25 | 30 | |||
| 40 | ||||
| 60 | ||||
| 70 | ||||
Frame material: High-strength aluminum alloy 6061/T6.
Roof cover/triangle cloth: Double PVC-Coated Polyester, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Side wall weight: 650g/sqm
Roof cover weight : 850g/sqm
Frame connection: Hot-dip galvanized steel structure
Allowed temperature condition: -30 degree Celsius+70 degree Celsius
Wind load: max. 100km/h (can be reinforced)
Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
